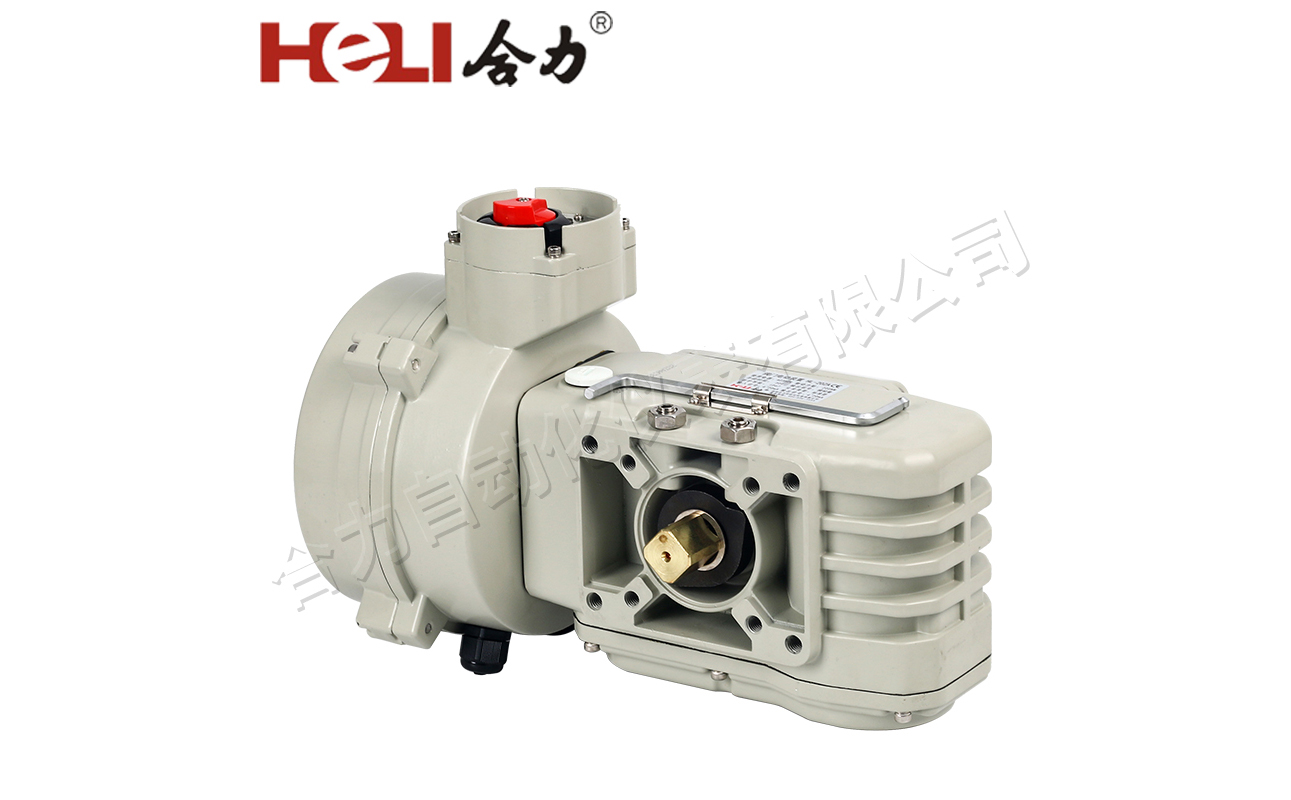

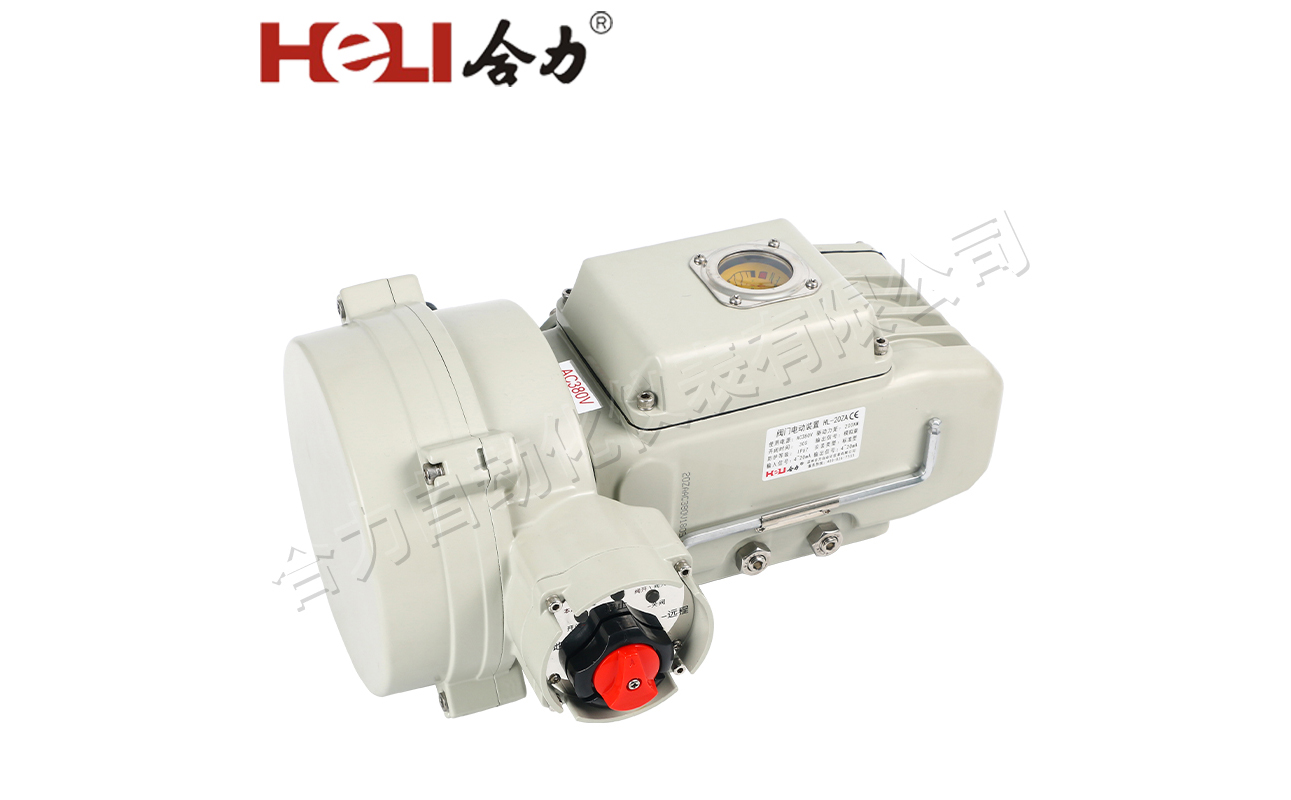

带本地控制器的hl执行机构
technical parameter
performance | model | hl-05za | hl-10za | hl-20za | hl-50za | hl-100za | hl-200za | hl-400za | hl-600za |
power | ac110v、ac220v、ac380v | ||||||||
motor power | 10w | 23w | 40w | 90w | 100w | 100w | 200w | 200w | |
rated current | 0.24a | 0.32a | 0.48a | 0.92a | 1.0a | 1.2a | 2.1a | 2.1a | |
output torque | 50nm | 100nm | 200nm | 500nm | 1000nm | 2000nm | 4000nm | 6000nm | |
action time | 30s | 30s | 30s | 30s | 50s | 100s | 100s | 150s | |
rotary angle | 0-90° | ||||||||
input signal | 4~20madc、1~5vdc、0-10vdc（others would be set before sale） | ||||||||
output signal | 4~20madc（others would be set before sale） | ||||||||
voltage- withstandingvalue | dc12v、dc/ac24v；500vac/1min | ||||||||
insulted resistance | dc12v、dc/ac24v；100vac/300vdc | ||||||||
enclosure protection | ip-67 | ||||||||
surrounding temperature | -25℃-60℃（the other temperatures can be customized） | ||||||||
installation angle | any angle | ||||||||
case material | aluminium alloy die-casting | ||||||||
optional function | overtorque protection、heater space、overheat protection | ||||||||
product color | milk white (other colors customized) | ||||||||
